T-bolt

T-screw

T-screw

Product Introduction：

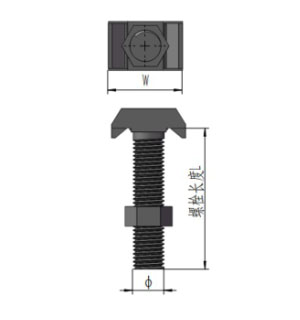

Product Name: T-bolt

Product Parameters


T-head modelHA72/48 HA50/30HA40/22HA38/17  HA28/15
Bolt diameterM20-30 M10-20M10-16M10-16 M6-12



Bolt load: tension, cable-stayed or shear force
ModelRecommended tightening torque

Design value of resistance

 Frd[kN]

Bending design value

Mrd[Nm]

φMa[Nm]4.68.8A2A4-504.68.8A2A4-50
M633.1-　-2.8-　-
M885.6-　-7.0-　6.2
M10159.018.6　9.014.034.9　12.2
M122513.027.2　13.024.561.2　21.4
M166024.250.5　24.262.2155.4　54.3
M2012037.879.2　37.8121.1302.5　106.0
M2420054.3113.7　54.3209.6524.0　183.3
M2730070.7148.4　-310.7776.8　-
M3040086.4-　-420.0-　-

Product Details
