Spring Nut

PNP

PNP

Product Introduction：

Non spring steel nut PNP:

Surface treatment - hot dip galvanizing; electro galvanizing; stainless steel


Product Parameters


Steel nuts without spring
Product modelThread size
PNEL06M6
PNEL08M8
PNEL10M10
PNEL12M12
PNEL16M16

These data were established by the relevant testing agency based on the application with a safety factor of 3.0.

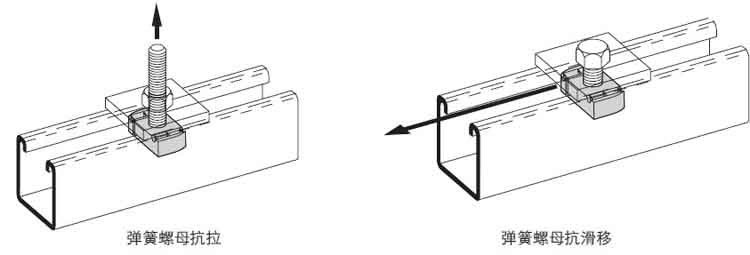

Performance of profile steel nut
Section steel nutLocking torque（NM）Anti sliding load（kg）Tensile load（kg）



Mild steel
M615209476
M828295500
M1056365710
M1665406855



Stainless steel
M61828252
M81861453
M1035122700
M1656172750

Product Details
