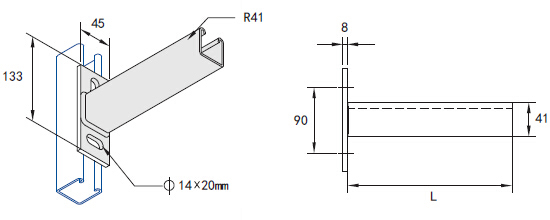

Bracket cantilever

F2663

F2663

Product Introduction：

Product Name: bracket cantilever f2663

① It is mainly used for the installation and fixation of pipes or cable trays arranged along walls or columns.

② It is also applicable to the installation and fixation of pipelines close to the top surface of the structure or the ground.

③ General performance.

④ Convenient for use in narrow space.


Product Parameters

F2663
Product numberSurface treatment W/100L/mm (KN) (KN)  (KN) (KN)
EGHGSS
F2663/150 ·   · · 77 150  6.203.103.102.06
F2663/300 ·   · · 120300 3.201.601.601.06
F2663/450 ·  · · 163450 2.151.071.070.71
F2663/600 ·   ·  · 207600 1.620.810.810.54
F2663/750·  ·  · 250750 1.300.650.65 0.43

Product Details




安装

① Drill holes in concrete structure and install anchor bolts. ② Install the cantilever and tighten the anchor bolt to the required torque. ③ Install piping.
