Bracket cantilever

F2663T

F2663T

Product Introduction：

Product Name: bracket cantilever f2663t

Product Description:

① It is mainly used for the installation and fixation of pipes or cable trays arranged along walls or columns.

② It is also applicable to the installation and fixation of pipelines close to the top surface of the structure or the ground.

③ General performance.

④ Convenient for use in narrow space.


Product Parameters

F2663T
Product numbersurface treatmentW/100L/mm(KN)(KN)(KN)(KN)
EGHGSS
F2663T/150···751506.123.063.062.04
F2663T/300···1163003.061.531.531.02
F2663T/450···1574502.041.021.020.69
F2663T/600···1986001.530.760.760.50
F2663T/750···2397501.220.610.610.40

Product Details

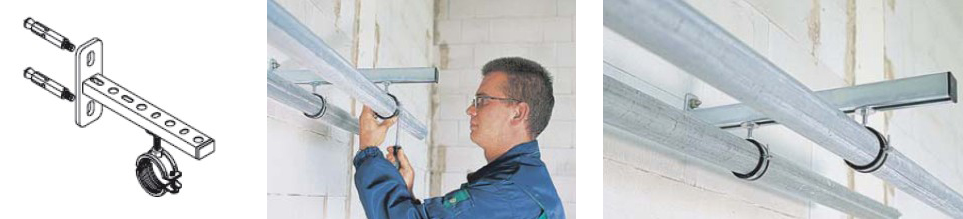

Installation

① Drill holes in concrete structure and install anchor bolts. ② Install the cantilever and tighten the anchor bolt to the required torque. ③ Install piping.
