Since the beginning of this year, the installation Co., Ltd. has promoted the application of BIM Technology and new fabricated supports and hangers in the field construction of civil plate, taking Chunxi building project as the implementation object.

With the rapid development of the times, there are more and more new requirements in the field of engineering construction, which makes some new materials, new technologies and new processes quietly take root in the civil mechanical and electrical installation industry, have more and more extensive application, and gradually replace the traditional installation technology with its unique advantages, leading the future development direction of the installation industry. When the traditional installation process is replaced by the advanced technology of the civil company, we find that the old installation process of the new company has been replaced by some advanced technologies. Leaders at all levels of the company are far sighted, deeply observe and understand the future development trend of the industry, firmly grasp the opportunity brought by the new trend, introduce new technologies and new products such as building information model (BIM) technology and new fabricated supports and hangers, so as to realize their own technical innovation. Chunxi building project, which is in the stage of installation and embedment, is taken as the pilot project for the application of new technology and new products Project.

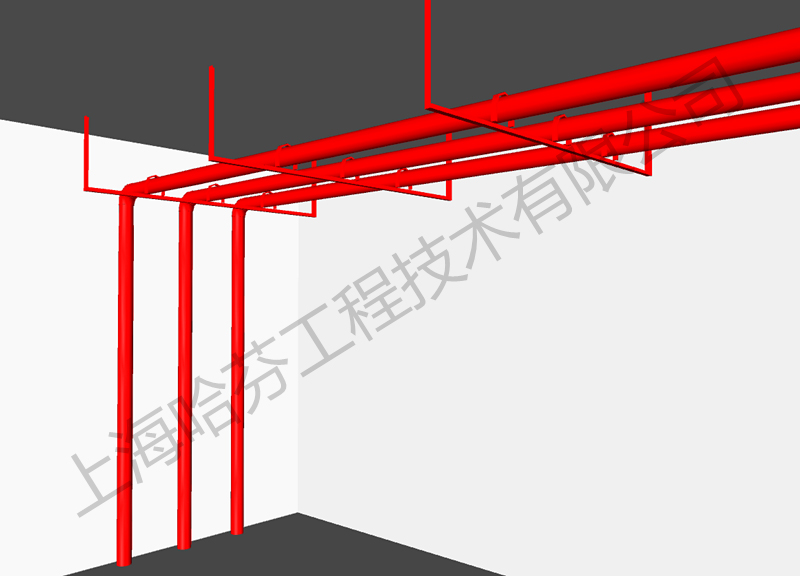

In order to better solve practical problems with BIM Technology and really bring into full play the maximum value of introducing this technology, after careful study by leaders at all levels, combined with the actual situation of Chunxi building project, this project is applied in Chunxi building project under the condition of various pipeline lines, great changes in beam height, net height under beam, and strict requirements of the owner on the indoor net height of the building Technology is particularly appropriate. At the same time, the factory prefabrication of the supports and hangers is realized by using the new prefabricated supports and hangers in the first to fifth floors, so as to achieve a substantial leap in energy conservation, environmental protection and sensory quality. The real-time follow-up of the first to fifth floors from the aspects of construction quality, cost control and construction progress is compared with the traditional installation technology, so as to provide guidance for the application of the technology in other projects in the future. Although we are not the precedent of BIM Technology Application in the construction industry of Yunnan Province, it is the first time to use this new technology for construction guidance from the end to end. In addition, the new type of fabricated supports and hangers used together are the first in Yunnan Province. Therefore, the company also decided to seize the opportunity to apply for the "high quality project" award of Yunnan Province.

When Chunxi building project department received the company's notice on the application of BIM Technology, the project department responded positively, seriously organized the implementation of various requirements, and fully cooperated with the company's BIM technical personnel. After one month's hard work, the three-dimensional rendering of the basement's second basement had begun to take shape. In order to successfully carry out the next step of work, the project department decided to hold a preliminary BIM Technology results display, invited the owner and the supervision unit to guide our work. At the meeting, animation was used to vividly show the collision problems of various specialties in the basement in the construction process before optimization and the 3D animation effect map after the collision problem was optimized and solved by using BIM Technology 。 After listening to the report, all units gave high praise to the company's BIM Technology optimization scheme.

At the same time, in order to meet the needs of the company's future BIM Technology and cultivate more technical personnel, the 11th direct management department of the installation Co., Ltd. organized the technical chief engineer and construction personnel of each project department to carry out the training of "building information model (BIM) technology and its application in mechanical and electrical installation industry" in the project Department of Chunxi building on May 25, 2014. This training invited the company's BIM Technology software service provider's technical personnel to give lectures. Firstly, from the overview of building information model (BIM) technology, it introduces the application process and processing means of several commonly used BIM technologies; secondly, it details the application of BIM Technology at different levels in the construction process, and introduces how to arrange according to the project situation, owner's requirements and construction period Thirdly, it uses BIM Technology to demonstrate how to use various functions of software to model, how to select appropriate software design module according to actual needs, and how to answer students' questions in detail through interactive communication; in addition, it also shows many successful examples of BIM application in many countries and abroad, and comprehensively and deeply introduces BIM Technology
